TLS NoVerify: Bypass All The Things

🚀 Get the tool: github.com/f0rw4rd/tls-preloader

A universal TLS certificate bypass tool supporting OpenSSL, GnuTLS, NSS, mbedTLS, and wolfSSL - all with a single LD_PRELOAD!

When conducting security research on embedded devices and industrial applications, researchers frequently encounter a common obstacle: TLS certificate validation. Many embedded applications are built using OpenSSL or similar libraries with properly implemented certificate verification. While this is excellent from a security perspective, it presents challenges during legitimate research activities when attempting to analyze network traffic.

Just trying to get the data from embedded devices

The typical scenario involves receiving CERTIFICATE_VERIFY_FAILED errors when attempting to intercept and analyze application traffic. This occurs because the application correctly validates the certificate chain and rejects any certificates that don’t match its expectations.

Traditional approaches to this problem include:

• Binary patching - Requires deep knowledge of the specific TLS library implementation and some time
• Dynamic instrumentation (Frida) - Powerful but requires writing JavaScript hooks for each target application and library, also Frida does not work well with musl libc user spaces
• Certificate infrastructure setup - Time-consuming process of creating CA certificates, and some embedded systems have read-only CA files
• Source code modification - Only viable when source code is available, which is rarely the case for proprietary applications

Solution: Dynamic Library Interposition with LD_PRELOAD

The tls-preloader tool provides an elegant solution to this problem by leveraging the LD_PRELOAD mechanism available on Linux and Unix systems. This approach allows dynamic interception of library function calls without modifying the target application or its libraries.

How Linux Dynamic Linking Works

When a program starts on Linux, the dynamic linker (ld.so) is responsible for loading all required shared libraries and resolving function symbols. Here’s how the process works:

%%{init: {'theme':'dark'}}%%
graph TD
    A[Program starts] --> B[Dynamic linker ld.so activates]
    B --> C{LD_PRELOAD set?}
    C -->|Yes| D[Load LD_PRELOAD libraries first]
    C -->|No| E[Load standard libraries]
    D --> E
    E --> F[Resolve symbols in order]
    F --> G[First match wins!]
    G --> H[Program runs with resolved symbols]

    style D fill:#ff6666,stroke:#fff,stroke-width:2px,color:#000
    style G fill:#66ff66,stroke:#fff,stroke-width:2px,color:#000
    style A fill:#444,stroke:#fff,color:#fff
    style B fill:#444,stroke:#fff,color:#fff
    style C fill:#555,stroke:#fff,color:#fff
    style E fill:#444,stroke:#fff,color:#fff
    style F fill:#444,stroke:#fff,color:#fff
    style H fill:#444,stroke:#fff,color:#fff

The key insight: When LD_PRELOAD is set, those libraries are loaded before the standard system libraries. Since the dynamic linker uses the first symbol it finds, our interceptor functions take precedence over the original ones.

Technical Implementation

LD_PRELOAD=/tmp/libtlsnoverify.so your_app

The tool works by interposing certificate verification functions and returning success values, effectively bypassing validation checks. This approach eliminates the need for binary patching, recompilation, or complex certificate infrastructure.

Understanding Symbol Resolution with LD_DEBUG

The dynamic linker provides powerful debugging capabilities through the LD_DEBUG environment variable. This is invaluable for understanding which functions are being called from which libraries - especially useful in complex systems with custom crypto implementations.

# See all symbol bindings - great for finding crypto functions
LD_DEBUG=bindings curl https://example.com 2>&1 | grep -i verify

# Example output showing OpenSSL symbol resolution:
#  31795: binding file /usr/lib/libssl.so.3 [0] to /usr/lib/libcrypto.so.3 [0]: normal symbol `X509_verify_cert' [OPENSSL_3.0.0]
#  31795: binding file /usr/lib/libssl.so.3 [0] to /usr/lib/libcrypto.so.3 [0]: normal symbol `X509_VERIFY_PARAM_set1_ip' [OPENSSL_3.0.0]

Other useful LD_DEBUG options for security research:

# Show library loading order
LD_DEBUG=libs ./target_app

# See all symbol lookups (verbose!)
LD_DEBUG=symbols ./target_app

# Track library initialization
LD_DEBUG=init ./target_app

# Everything at once (prepare for data overload)
LD_DEBUG=all ./target_app 2>&1 | less

libc Dependencies and Variations

The behavior of LD_PRELOAD and LD_DEBUG can vary between different libc implementations:

• glibc (GNU C Library) - Full featured, supports all LD_DEBUG options
• musl libc - Lightweight, limited LD_DEBUG support (only LD_DEBUG=1 for basic output)
• uClibc - Embedded systems, basic LD_PRELOAD support but minimal debugging

Supported TLS Libraries

The tool supports multiple TLS implementations commonly found in embedded and industrial applications:

• OpenSSL/BoringSSL - The most widely deployed TLS library
• GnuTLS - GNU Transport Layer Security library
• NSS - Network Security Services (Mozilla)
• mbedTLS - Lightweight TLS implementation for embedded systems
• wolfSSL - Embedded SSL/TLS library
• libcurl - HTTP library with built-in certificate validation

Practical Applications

The tool has several legitimate use cases in security research and development:

• Security assessments - Analyzing network traffic during penetration testing engagements
• Legacy application debugging - Troubleshooting industrial control systems and SCADA applications
• IoT device analysis - Intercepting communications from embedded devices for security evaluation
• Development and testing - Simplifying certificate management in test environments

Installation

git clone https://github.com/f0rw4rd/tls-preloader
cd tls-preloader
make
LD_PRELOAD=./libtlsnoverify.so curl https://expired.badssl.com

Technical Details: Intercepted Functions

The tool intercepts the following certificate verification functions:

• OpenSSL: SSL_CTX_set_verify, X509_verify_cert, and related validation functions
• GnuTLS: gnutls_certificate_verify_peers2, gnutls_certificate_verify_peers3
• NSS: CERT_VerifyCertificate and related NSS verification APIs
• curl: CURLOPT_SSL_VERIFYPEER, CURLOPT_SSL_VERIFYHOST options
• Additional library-specific verification functions

Known Limitations

The tool has several limitations that users should be aware of:

• Statically linked applications - Cannot intercept functions in statically linked binaries
• Rust applications using rustls - The rustls library is typically statically linked
• Go programs - Go’s native TLS implementation is not based on dynamic libraries
• Chrome/Chromium - Ships with a bundled, statically linked BoringSSL implementation
• High Level Language - C# and Java have high level implementations or some high level checks that can not be overloaded

Example Commands

# Basic usage - just make it work
LD_PRELOAD=/tmp/libtlsnoverify.so wget https://self-signed.badssl.com

# Debug mode - see what's being bypassed
TLS_NOVERIFY_DEBUG=1 LD_PRELOAD=/tmp/libtlsnoverify.so curl https://expired.badssl.com

# Backtrace mode - for when you really want to know what's happening
TLS_NOVERIFY_BACKTRACE=1 LD_PRELOAD=/tmp/libtlsnoverify.so curl https://expired.badssl.com

# The "let's break Firefox" special
TLS_NOVERIFY_BACKTRACE=1 LD_PRELOAD=/tmp/libtlsnoverify.so firefox https://badssl.com/dashboard/

Get Started with tls-preloader

Ready to bypass TLS validation for your security research? Check out the full source code and documentation:

→ github.com/f0rw4rd/tls-preloader

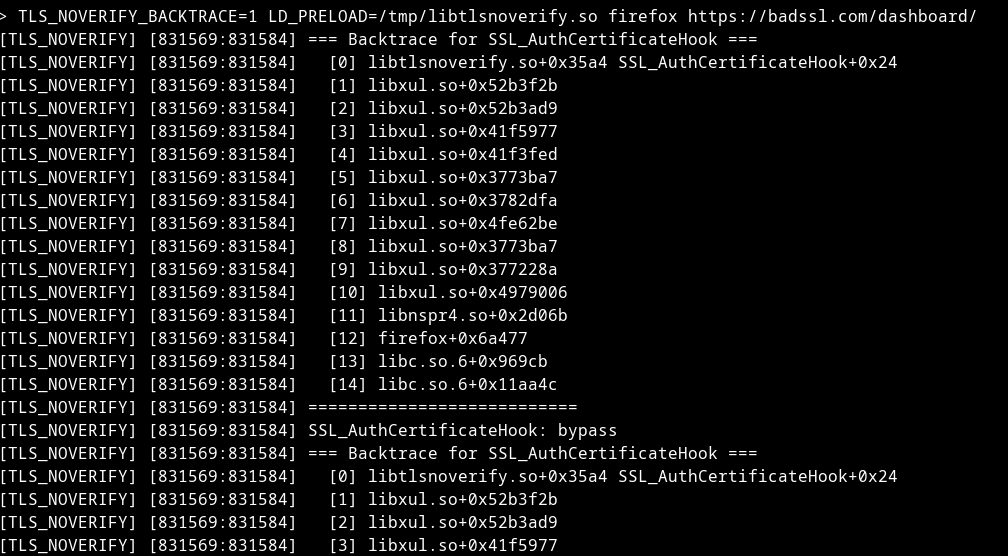

Case Study: Firefox and BadSSL.com

The following example demonstrates the tool’s effectiveness when used with Firefox browser accessing the BadSSL.com test suite:

$ TLS_NOVERIFY_BACKTRACE=1 LD_PRELOAD=/tmp/libtlsnoverify.so firefox https://badssl.com/dashboard/

The backtrace shows the tool successfully intercepting Firefox’s NSS library calls. Each certificate validation attempt is logged and bypassed.

The BadSSL.com dashboard, which is designed to test certificate validation, shows all test cases in red - indicating that the browser successfully connected to hosts with bad certificates. This is the expected behavior when using tls-preloader, as it bypasses all certificate validation checks. The tool effectively disables protection against expired certificates, self-signed certificates, hostname mismatches, and other TLS security issues that BadSSL.com tests for.

Bonus: Why LD_PRELOAD Doesn’t Work on sudo

Ever wondered why you can’t just LD_PRELOAD sudo? Check this out:

# Try to preload a library with sudo using absolute path
$ strace -E LD_PRELOAD="/tmp/raccoon.so" -e openat sudo 2>&1 | grep raccoon
# No output - LD_PRELOAD with absolute path completely ignored!

# But wait, what about relative paths?
$ strace -E LD_PRELOAD="raccoon.so" -e openat sudo 2>&1 | grep raccoon
openat(AT_FDCWD, "/usr/lib/sudo/glibc-hwcaps/x86-64-v3/raccoon.so", O_RDONLY|O_CLOEXEC) = -1 ENOENT
openat(AT_FDCWD, "/usr/lib/sudo/glibc-hwcaps/x86-64-v2/raccoon.so", O_RDONLY|O_CLOEXEC) = -1 ENOENT
openat(AT_FDCWD, "/usr/lib/sudo/raccoon.so", O_RDONLY|O_CLOEXEC) = -1 ENOENT
openat(AT_FDCWD, "/usr/lib/glibc-hwcaps/x86-64-v3/raccoon.so", O_RDONLY|O_CLOEXEC) = -1 ENOENT
openat(AT_FDCWD, "/usr/lib/glibc-hwcaps/x86-64-v2/raccoon.so", O_RDONLY|O_CLOEXEC) = -1 ENOENT
openat(AT_FDCWD, "/usr/lib/raccoon.so", O_RDONLY|O_CLOEXEC) = -1 ENOENT
# Interesting! It searches in secure paths only

# Same library with regular id command
$ strace -E LD_PRELOAD="/tmp/raccoon.so" -e openat id 2>&1 | grep raccoon
openat(AT_FDCWD, "/tmp/raccoon.so", O_RDONLY|O_CLOEXEC) = -1 ENOENT
# Dynamic linker loads from anywhere for non-setuid binaries!

The key difference: setuid binaries only search secure system paths (/usr/lib, /lib) for relative LD_PRELOAD libraries, while completely ignoring absolute paths containing /. This prevents loading untrusted libraries from user-writable locations like /tmp.

Note: If you have root access to copy your library to /usr/lib, then LD_PRELOAD="libtlsnoverify.so" would actually work with sudo.

sudo cp libtlsnoverify.so /usr/lib/
sudo chmod u+s /usr/lib/libtlsnoverify.so  # Needs setuid bit! (only needed for LD_PRELOAD and not DT_NEEDED)
sudo chown root:root /usr/lib/libtlsnoverify.so  # Proper ownership

The AT_SECURE Protection

When executing binaries that change privileges, the kernel sets AT_SECURE=1, causing the dynamic linker to ignore most LD_* environment variables:

AT_SECURE=1 triggers when gaining privileges via:

• ✅ setuid/setgid binaries owned by different user
• ✅ File capabilities (CAP_NET_RAW, CAP_NET_BIND_SERVICE, etc.)
• ✅ Ambient capabilities that grant new privileges
• ❌ Regular binaries without privilege changes

Impact on tls-preloader

Our tool works normally on most applications but can’t intercept:

• System utilities like sudo, passwd, ping
• Setgid programs accessing restricted resources
• Any binary that elevates privileges

This is a security feature, not a bug! Here’s how the security model works:

%%{init: {'theme':'dark'}}%%
graph TD
    A[setuid/setgid binary executes] --> B[Kernel sets AT_SECURE=1]
    B --> C[Dynamic linker checks AT_SECURE]
    C --> D{Security restrictions}

    D --> E[LD_PRELOAD restrictions:<br/>• Absolute paths ignored<br/>• Only system paths searched<br/>• Library must be setuid]
    D --> F[LD_LIBRARY_PATH ignored]
    D --> G[Other LD_* vars sanitized]

    E --> H{Library location check}
    H -->|User path<br/>/tmp, /home| I[❌ Rejected]
    H -->|System path<br/>/usr/lib, /lib| J{Ownership check}

    J -->|Not root owned| I
    J -->|Root owned + setuid| K[✅ Library loaded]

    K --> L[Symbol interposition works]
    L --> M[Functions intercepted]

    style A fill:#444,stroke:#fff,color:#fff
    style B fill:#ff6666,stroke:#fff,stroke-width:2px,color:#000
    style D fill:#ff6666,stroke:#fff,stroke-width:2px,color:#000
    style E fill:#ffcc66,stroke:#fff,stroke-width:2px,color:#000
    style I fill:#ff6666,stroke:#fff,stroke-width:2px,color:#000
    style K fill:#66ff66,stroke:#fff,stroke-width:2px,color:#000

---
